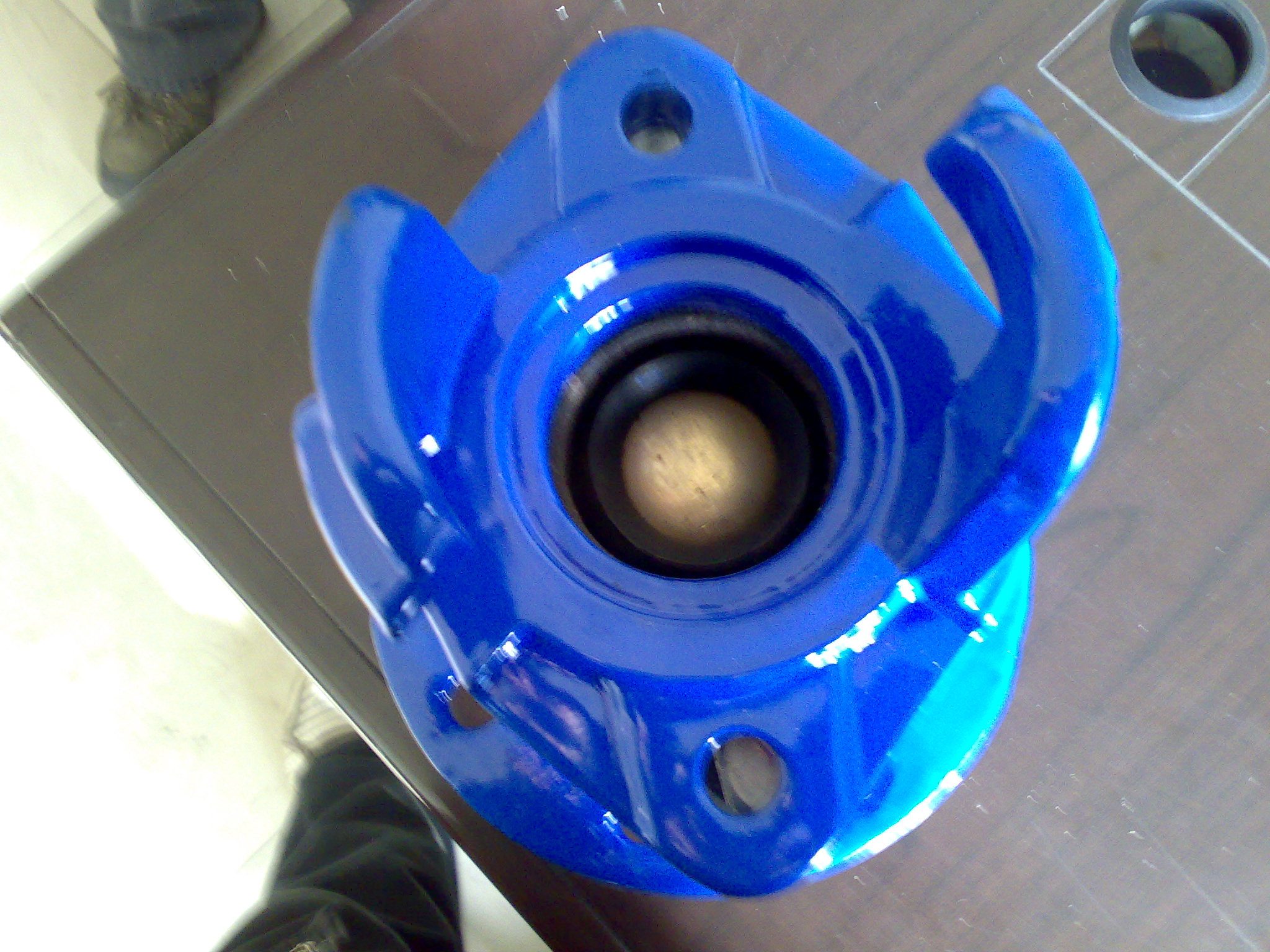

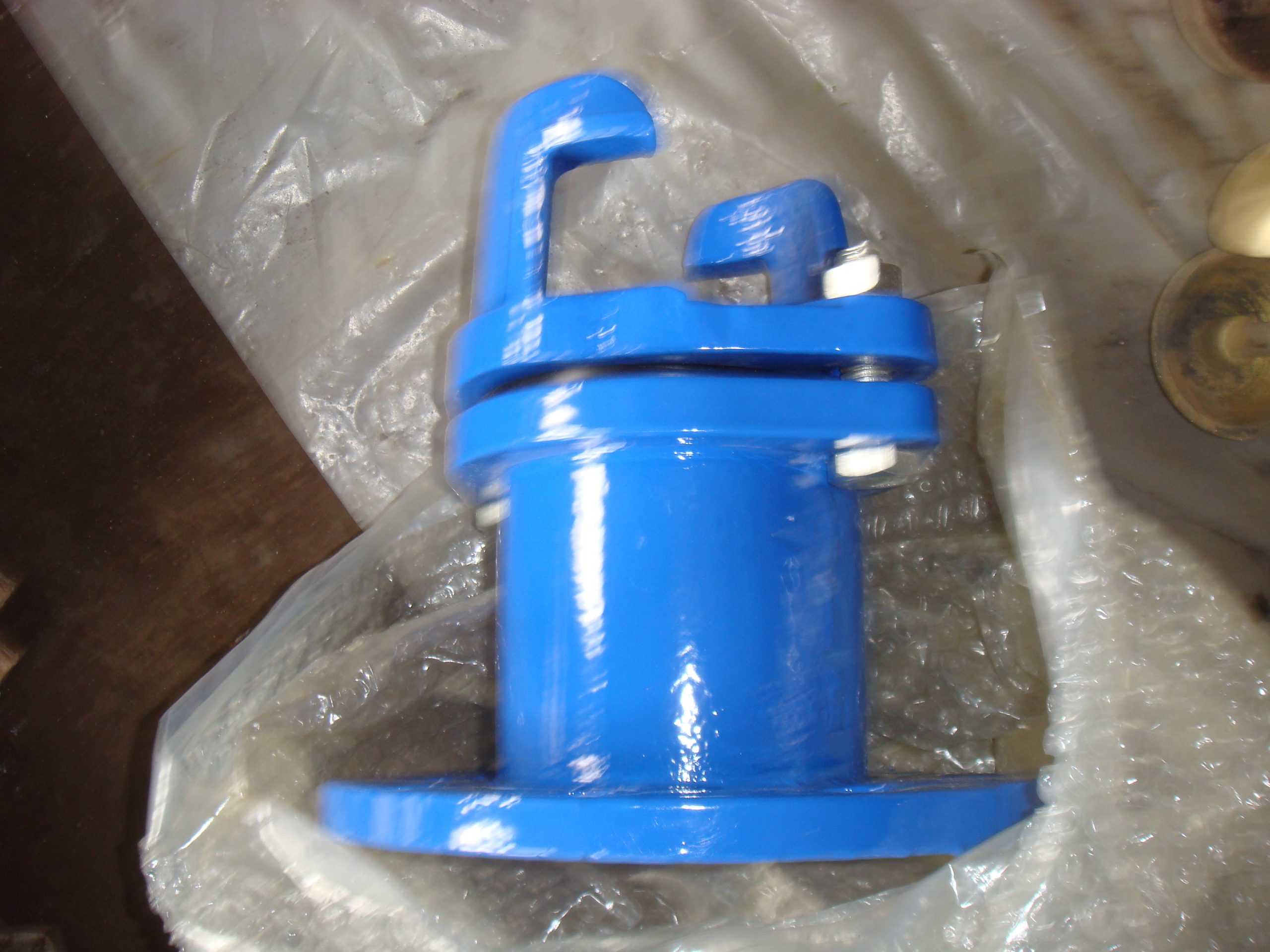

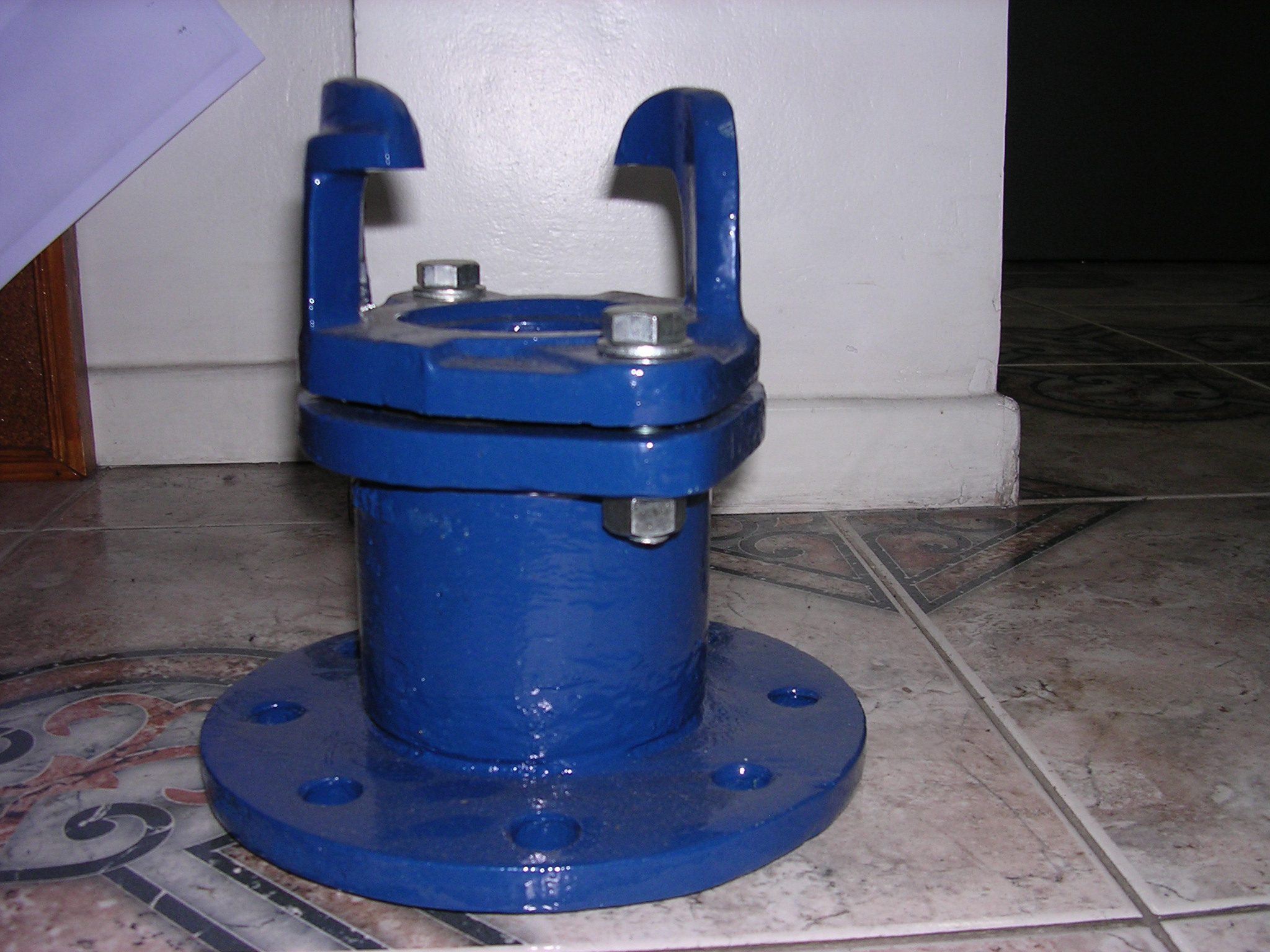

Spring Hydrant is one kind of quick fire hydrant, it is easy to install. Owing to the spring, it is more automatic, no need manual operation.
STANDARD
Techinical Specifications:
Flange drilling: ISO7005-2(EN1092-2,DIN2501)
Working Temperature: 0-100°C
Working Pressure: PN10/PN16
Main Parts and Material:
| Item | Part Name | Material |
| 1 | Bolts And Nuts | Carbon steel |
| 2 | Cap | Cast Iron/ Ductile Iron |
| 3 | Body | Cast Iron/ Ductile Iron |
| 4 | Plug | Copper |
| 5 | Spring | Stainless Steel |
| 6 | Flange | Cast Iron/ Ductile Iron |
Main Dimensions:
Unit: mm
| PN | DN | D | C | K | L | Holes |
| 16 | 80 | 200 | 19 | 160 | 18 | 8 |
For other sizes not mentioned above, please contact us.
We have right to change the data without further notice.
