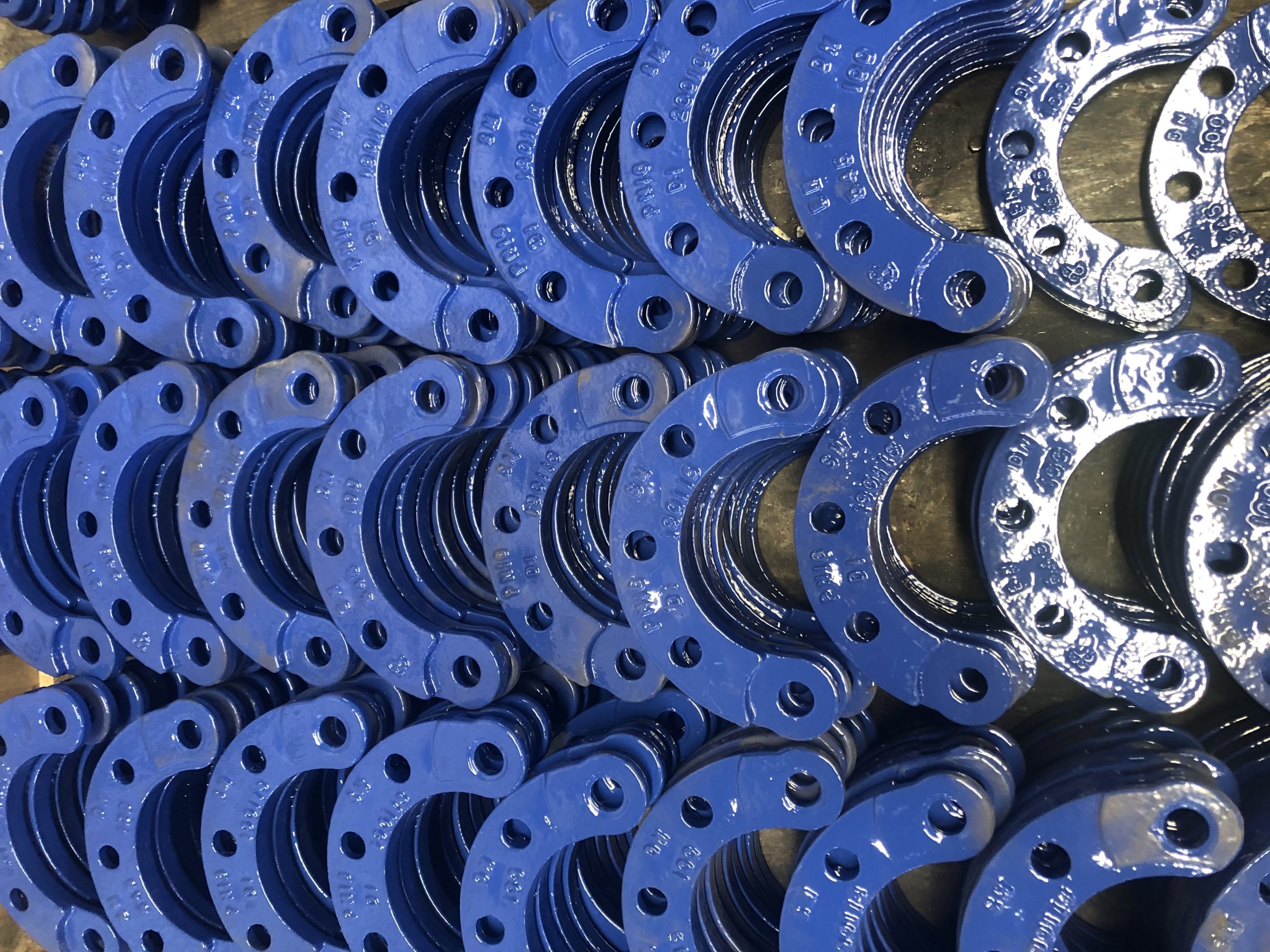

SYI can supply Pipeline Accessories from DN80 to DN2000, with the coating of Zinc and Black Bitumen coating, Red/Blue Epoxy coating, or PU (polyurethane) coating.
FLANGE ACCESSORIES FOR FLANGED FITTINGS IN ACCORDANCE WITH EN 545

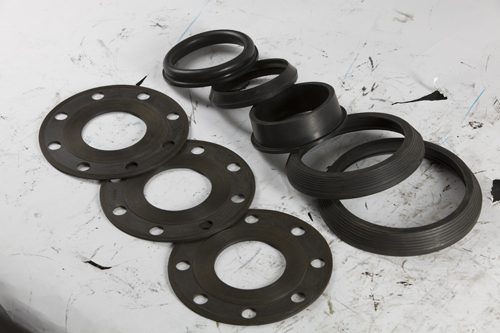

P.D.M. Flat Gasket in accordance with EN 681.1
| DN | PN10 | PN16 | ||
| SIZE (mm) | NO. | SIZE (mm) | NO. | |
| 40 | M16x65 | 4 | M16x65 | 4 |
| 50 | M16x65 | 4 | M16x65 | 4 |
| 60 | M16x65 | 4 | M16x65 | 4 |
| 65 | M16x65 | 4 | M16x65 | 4 |
| 80 | M16x65 | 8 | M16x65 | 8 |
| 100 | M16x65 | 8 | M16x65 | 8 |
| 125 | M20x70 | 8 | M20x70 | 8 |
| 150 | M20x70 | 8 | M20x70 | 8 |
| 200 | M20x70 | 8 | M20x70 | 12 |
| 250 | M20x80 | 12 | M24x65 | 12 |
| 300 | M20x80 | 12 | M24x85 | 12 |
| 350 | M20x80 | 16 | M24x85 | 16 |
| 400 | M24x85 | 16 | M27x100 | 16 |
| 450 | M24x85 | 20 | M27x100 | 20 |
| 500 | M24x85 | 20 | M30x115 | 20 |
| 600 | M27x100 | 20 | M33x120 | 20 |
| Note: The material of the bolts & nuts can be chosen by costomers’ requirements also.
|
||||
Note：the accessories are supplied respectively with the fittings usually.
