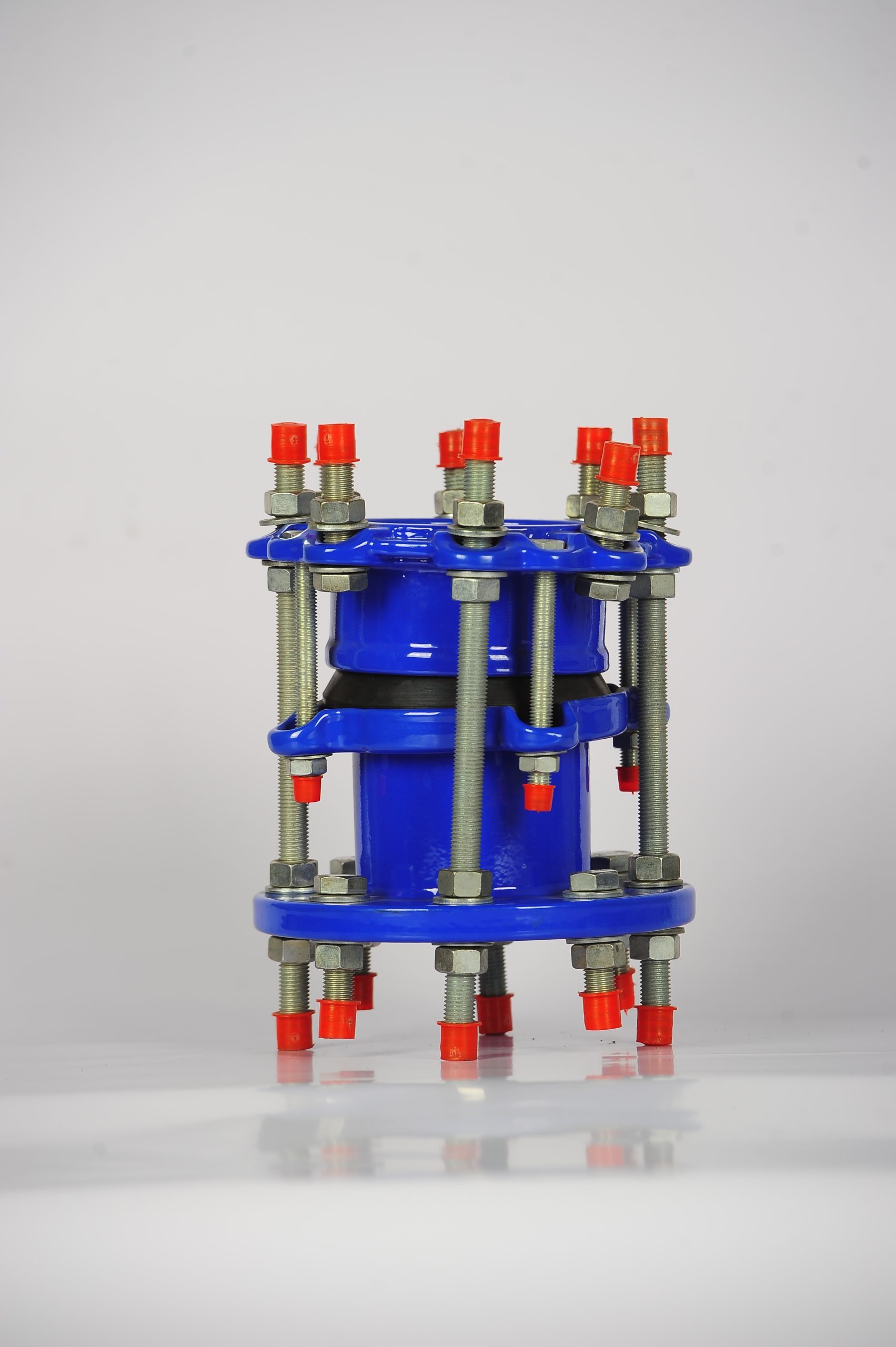

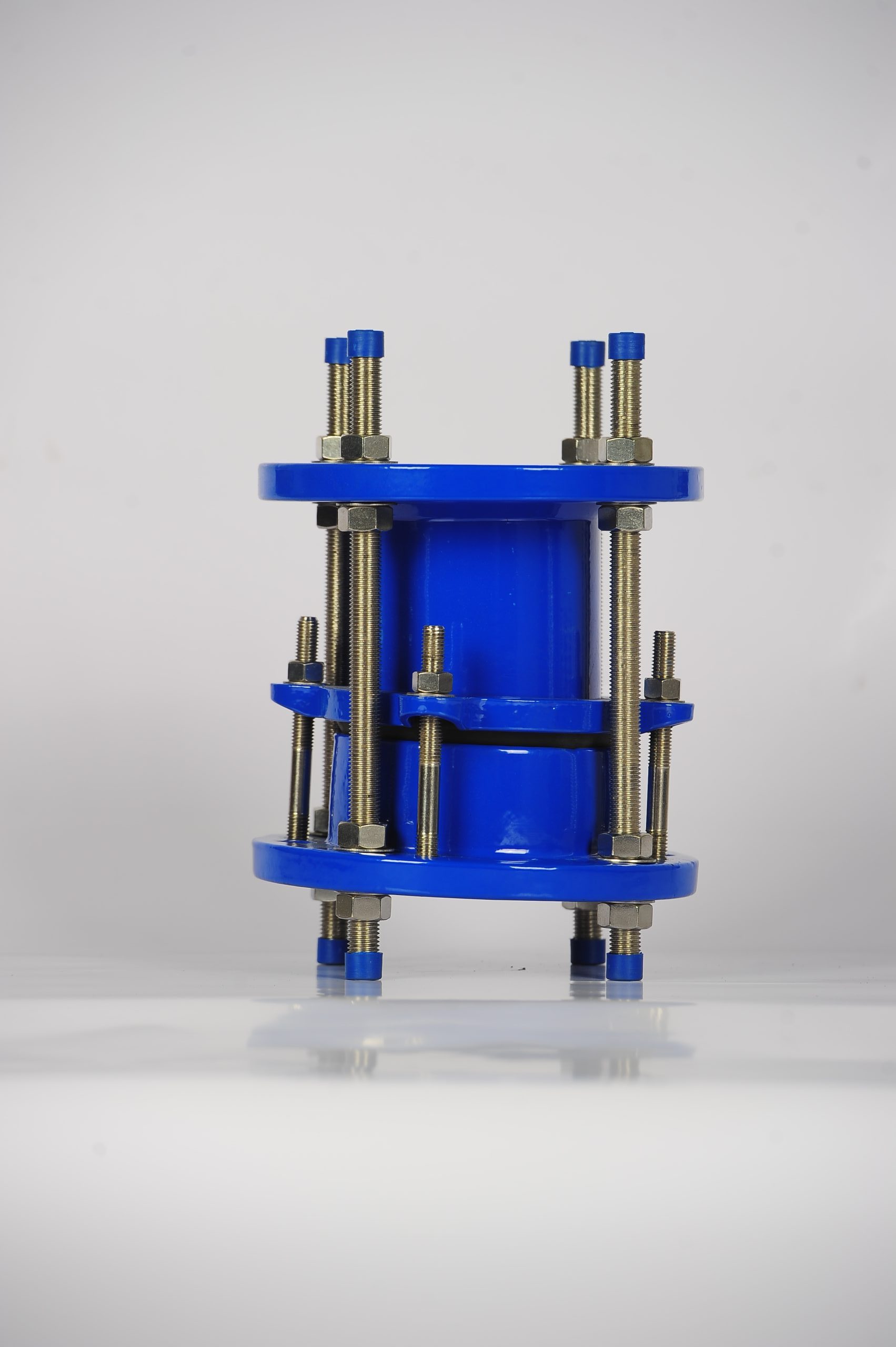

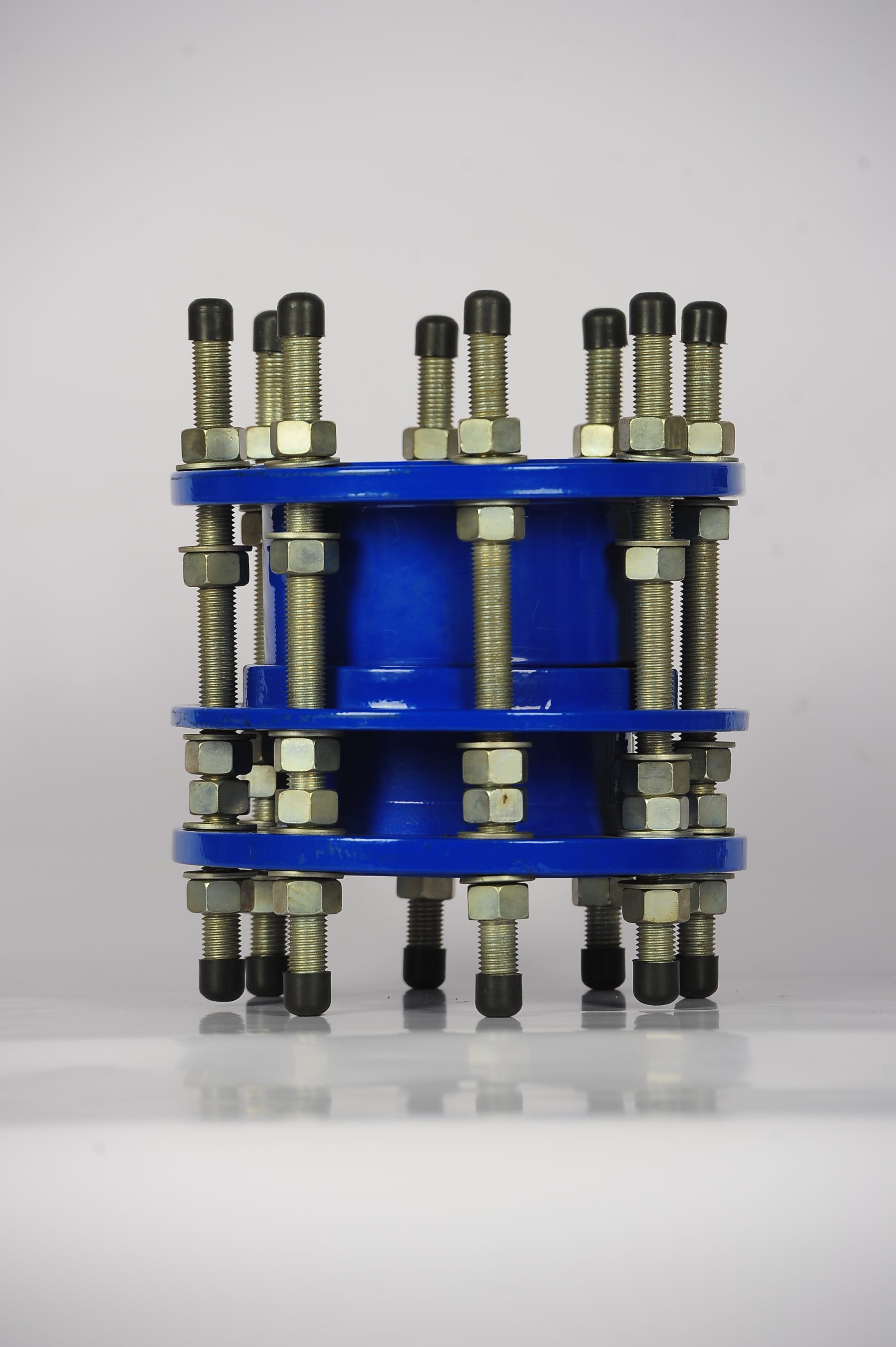

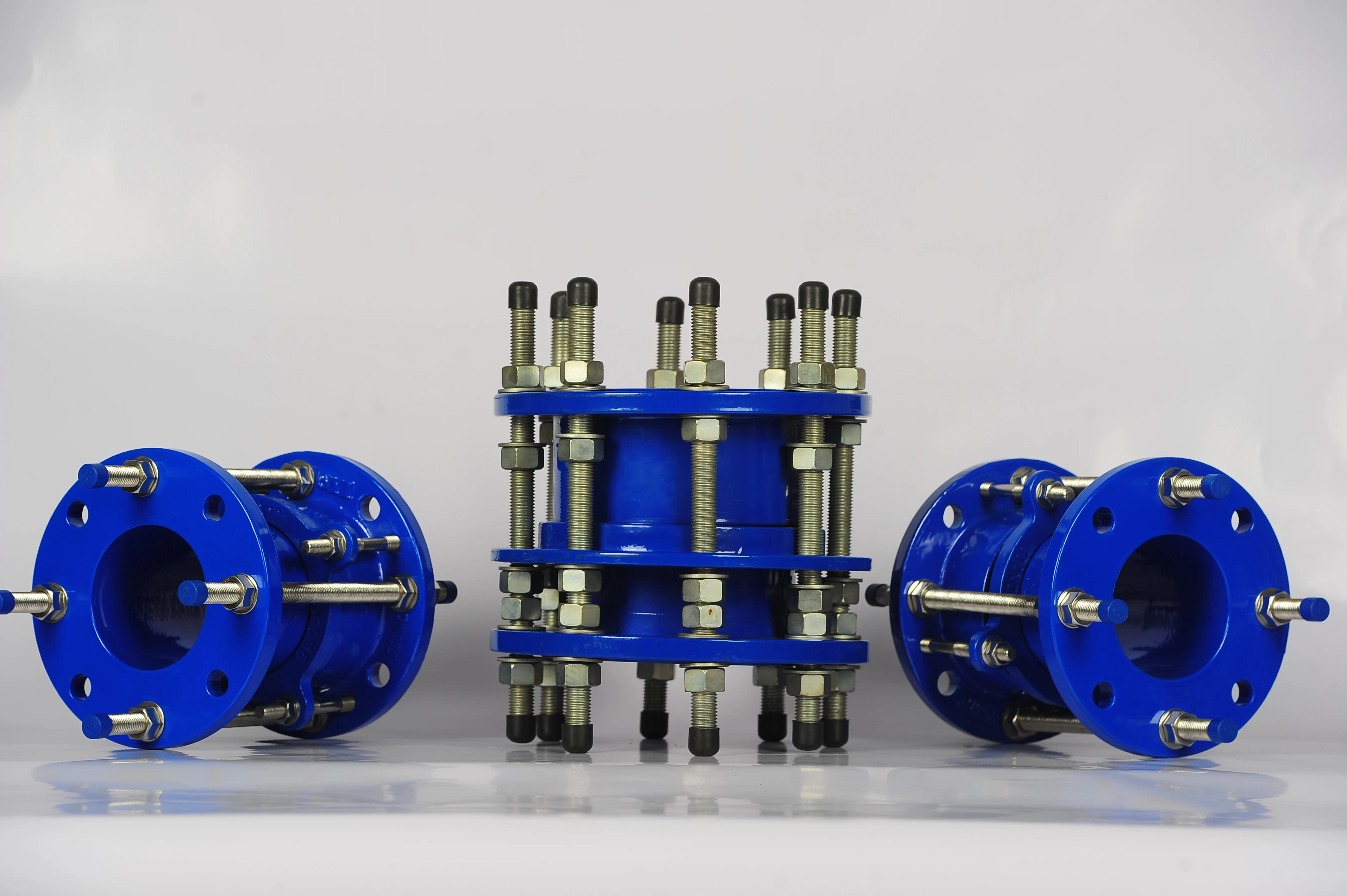

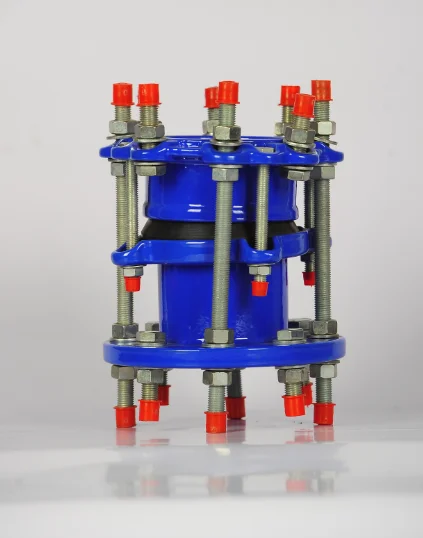

SYI COMPACT Dismantling Joints, developed by experienced engineers in SYI in 2020, the newest compact design in the market, more lighter, more easier, and more lower cost.
|
Material:
Body:Ductile Iron grade 500-7/450-10 in accordance with ISO 1083 or 70-50-05/65-45-12 with ASTM A536
Gasket:Rubber E.P.D.M./NBR/SBR in accordance with EN 681.1
Gland:Ductile Iron grade 500-7/450-10 in accordance with ISO 1083 or 70-50-05/65-45-12 with ASTM A536
Bolts And Nuts:Carbon steel grade 6.8 with galvanization
|
|
|
Flange:PN10 and PN16 drilling in accordance with ISO 7005-2/EN 1092-2
|
|
|
Working Pressure: 16 Bar or 250/350PSI
|
|
|
Fluid Temperature
|
0°C – 50°C， excluding frost
|
|
Coating
|
|
|
External coatings
|
Internal coatings
|
|
liquid epoxy resin painting
epoxy applied by FBE according to customers’ requirements |
liquid epoxy resin painting
epoxy applied by FBE according to customers’ requirements |
|
Reference Rules:Designed and tested in accordance with EN14525, ANSI/AWWA C219 and EN545
|
|
|
Accessories:gasket, stub(screw) bolts, washer, nuts etc. The accessories for Dismantling Joints are usually supplied by assembled on the body.
|
|
|
Features:
1.For the both ends, adopt Flange connection mode. 2.The overall length of the connection can be adjusted, there is a certain amount of expansion. Generally, the design maximum expansion is 50mm. 3.They could replace the double flange straight pipe during repairing, repairing the original damaged pipe fittings or connecting new pipes, and adjustable length characteristics make them more convenient than flange pipe in the application of construction and installation. They are usually connected adjacent to the valve. 4.The bolt can be directly used for connecting the flange in the pipeline. 5.At the same time, we can also supply half set of bolts, that is, bolts with 50% bolt holes. It belongs to our new design, which reduce the weight and cost, are more competitive. |
|
|
|
|

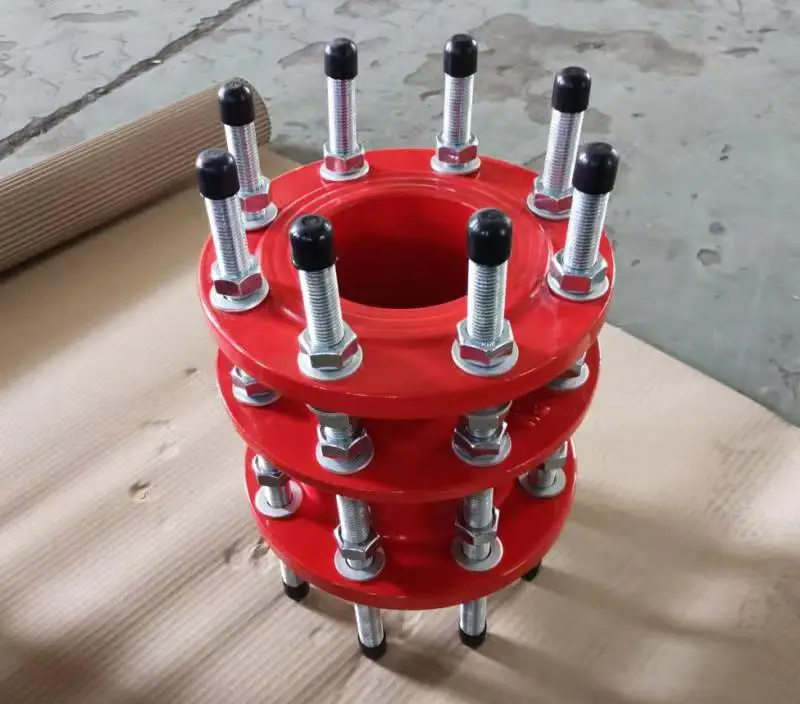

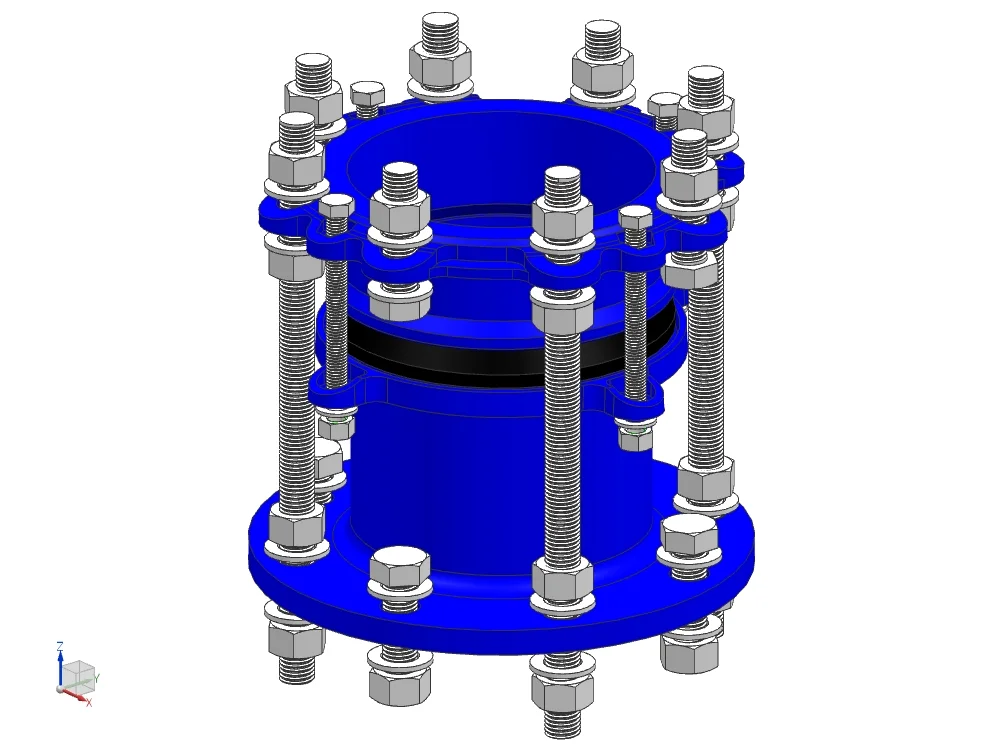

Dismantling Joint is assembled by a double flanged compositive fitting acting a retractile action between a flanged spigot and a flange adaptor.
It designed to provide longitudinal adjustment (up to 50mm) in flanged systems. It provide a simple method for the installation and removal of flanged products by adjusting the distance between two flanged products and turning round.
The installation is also simple and only use a torque wrench to tighten the high strength steel or stainless steel connection
bolts.
bolts.
It can be quickly disassembled and very convenient for servicing valves, pumps or instrumentation.
It simplifies the time required for maintenance and modification in future plumbing and reduces downtime for the entire pipeline project.
SYI-DJ, developed by experienced engineers in SYI in 2020, the newest compact design in the market, more lighter, more easier, and more lower cost.
Dimensions
|
PN10
|
|||||||||
|
SYI S. N.
|
DN
|
D1
|
D2
|
H
|
L
|
MIN Length of Joint
|
MAX Length of Joint
|
Bolt
|
|
|
mm
|
n
|
d
|
|||||||
|
SYI-DJ80P0
|
80
|
160
|
200
|
200
|
310
|
175
|
225
|
8
|
19
|
|
SYI-DJ100P0
|
100
|
180
|
220
|
200
|
310
|
175
|
225
|
8
|
19
|
|
SYI-DJ125P0
|
125
|
210
|
250
|
200
|
310
|
175
|
225
|
8
|
23
|
|
SYI-DJ150P0
|
150
|
240
|
285
|
200
|
320
|
175
|
225
|
8
|
23
|
|
SYI-DJ200P0
|
200
|
295
|
340
|
220
|
340
|
195
|
245
|
8
|
23
|
|
SYI-DJ250P0
|
250
|
350
|
400
|
230
|
370
|
205
|
255
|
12
|
23
|
|
SYI-DJ300P0
|
300
|
400
|
455
|
250
|
410
|
225
|
275
|
12
|
23
|
|
SYI-DJ350P0
|
350
|
460
|
505
|
260
|
410
|
235
|
285
|
16
|
23
|
|
SYI-DJ400P0
|
400
|
515
|
565
|
270
|
430
|
245
|
295
|
16
|
28
|
|
SYI-DJ450P0
|
450
|
565
|
615
|
270
|
430
|
245
|
295
|
20
|
28
|
|
SYI-DJ500P0
|
500
|
620
|
670
|
280
|
440
|
255
|
305
|
20
|
28
|
|
SYI-DJ600P0
|
600
|
725
|
780
|
300
|
480
|
275
|
325
|
20
|
31
|
|
SYI-DJ700P0
|
700
|
840
|
895
|
300
|
480
|
275
|
325
|
24
|
31
|
|
SYI-DJ800P0
|
800
|
950
|
1015
|
320
|
520
|
295
|
345
|
24
|
34
|
|
SYI-DJ900P0
|
900
|
1050
|
1115
|
320
|
520
|
295
|
345
|
28
|
34
|
|
SYI-DJ1000P0
|
1000
|
1160
|
1230
|
340
|
560
|
315
|
365
|
28
|
37
|
|
SYI-DJ1100P0
|
1100
|
1270
|
1340
|
340
|
560
|
315
|
365
|
32
|
37
|
|
SYI-DJ1200P0
|
1200
|
1380
|
1455
|
360
|
600
|
335
|
385
|
32
|
40
|
|
SYI-DJ1400P0
|
1400
|
1590
|
1675
|
380
|
630
|
355
|
405
|
36
|
43
|
|
SYI-DJ1500P0
|
1500
|
1700
|
1785
|
400
|
665
|
36
|
43
|
||
|
SYI-DJ1600P0
|
1600
|
1820
|
1915
|
400
|
665
|
375
|
425
|
40
|
49
|
|
SYI-DJ1800P0
|
1800
|
2020
|
2115
|
420
|
730
|
395
|
445
|
44
|
49
|
|
SYI-DJ2000P0
|
2000
|
2230
|
2325
|
440
|
730
|
415
|
465
|
48
|
49
|
|
SYI-DJ2200P0
|
2200
|
2440
|
2550
|
450
|
750
|
425
|
475
|
||
|
SYI-DJ2400P0
|
2400
|
2650
|
2760
|
460
|
770
|
435
|
485
|
||
|
SYI-DJ2600P0
|
2600
|
2850
|
2960
|
500
|
800
|
475
|
525
|
||
|
PN16
|
|||||||||
|
SYI S. N.
|
DN
|
D1
|
D2
|
H
|
L
|
MIN Length of Joint
|
MAX Length of Joint
|
Bolt
|
|
|
mm
|
n
|
d
|
|||||||
|
SYI-DJ80P1
|
80
|
160
|
200
|
200
|
310
|
175
|
225
|
8
|
19
|
|
SYI-DJ100P1
|
100
|
180
|
220
|
200
|
310
|
175
|
225
|
8
|
19
|
|
SYI-DJ125P1
|
125
|
210
|
250
|
200
|
310
|
175
|
225
|
8
|
19
|
|
SYI-DJ150P1
|
150
|
240
|
285
|
200
|
320
|
175
|
225
|
8
|
23
|
|
SYI-DJ200P1
|
200
|
295
|
340
|
220
|
340
|
195
|
245
|
12
|
23
|
|
SYI-DJ250P1
|
250
|
355
|
400
|
230
|
370
|
205
|
255
|
12
|
28
|
|
SYI-DJ300P1
|
300
|
410
|
455
|
250
|
410
|
225
|
275
|
12
|
28
|
|
SYI-DJ350P1
|
350
|
470
|
520
|
260
|
410
|
235
|
285
|
16
|
28
|
|
SYI-DJ400P1
|
400
|
525
|
580
|
270
|
430
|
245
|
295
|
16
|
31
|
|
SYI-DJ450P1
|
450
|
585
|
640
|
270
|
430
|
245
|
295
|
20
|
31
|
|
SYI-DJ500P1
|
500
|
650
|
715
|
280
|
440
|
255
|
305
|
20
|
34
|
|
SYI-DJ600P1
|
600
|
770
|
840
|
300
|
480
|
275
|
325
|
20
|
37
|
|
SYI-DJ700P1
|
700
|
840
|
910
|
300
|
480
|
275
|
325
|
24
|
37
|
|
SYI-DJ800P1
|
800
|
950
|
1025
|
320
|
520
|
295
|
345
|
24
|
40
|
|
SYI-DJ900P1
|
900
|
1050
|
1125
|
320
|
520
|
295
|
345
|
28
|
40
|
|
SYI-DJ1000P1
|
1000
|
1170
|
1255
|
340
|
560
|
315
|
365
|
28
|
43
|
|
SYI-DJ1100P1
|
1100
|
1270
|
1355
|
340
|
560
|
315
|
365
|
32
|
43
|
|
SYI-DJ1200P1
|
1200
|
1390
|
1485
|
360
|
600
|
335
|
385
|
32
|
49
|
|
SYI-DJ1400P1
|
1400
|
1590
|
1685
|
380
|
630
|
355
|
405
|
36
|
49
|
|
SYI-DJ1500P1
|
1500
|
1710
|
1820
|
400
|
665
|
36
|
56
|
||
|
SYI-DJ1600P1
|
1600
|
1820
|
1930
|
400
|
665
|
375
|
425
|
40
|
56
|
|
SYI-DJ1800P1
|
1800
|
2020
|
2130
|
420
|
730
|
395
|
445
|
44
|
56
|
|
SYI-DJ2000P1
|
2000
|
2230
|
2345
|
440
|
730
|
415
|
465
|
48
|
62
|
|
SYI-DJ2200P1
|
2200
|
2440
|
2555
|
450
|
750
|
425
|
475
|
||
|
SYI-DJ2400P1
|
2400
|
2650
|
2765
|
460
|
770
|
435
|
485
|
||
|
SYI-DJ2600P1
|
2600
|
2850
|
2960
|
500
|
800
|
475
|
525
|
||
For other sizes not mentioned above, please contact us. We have right to change the data without further notice.
