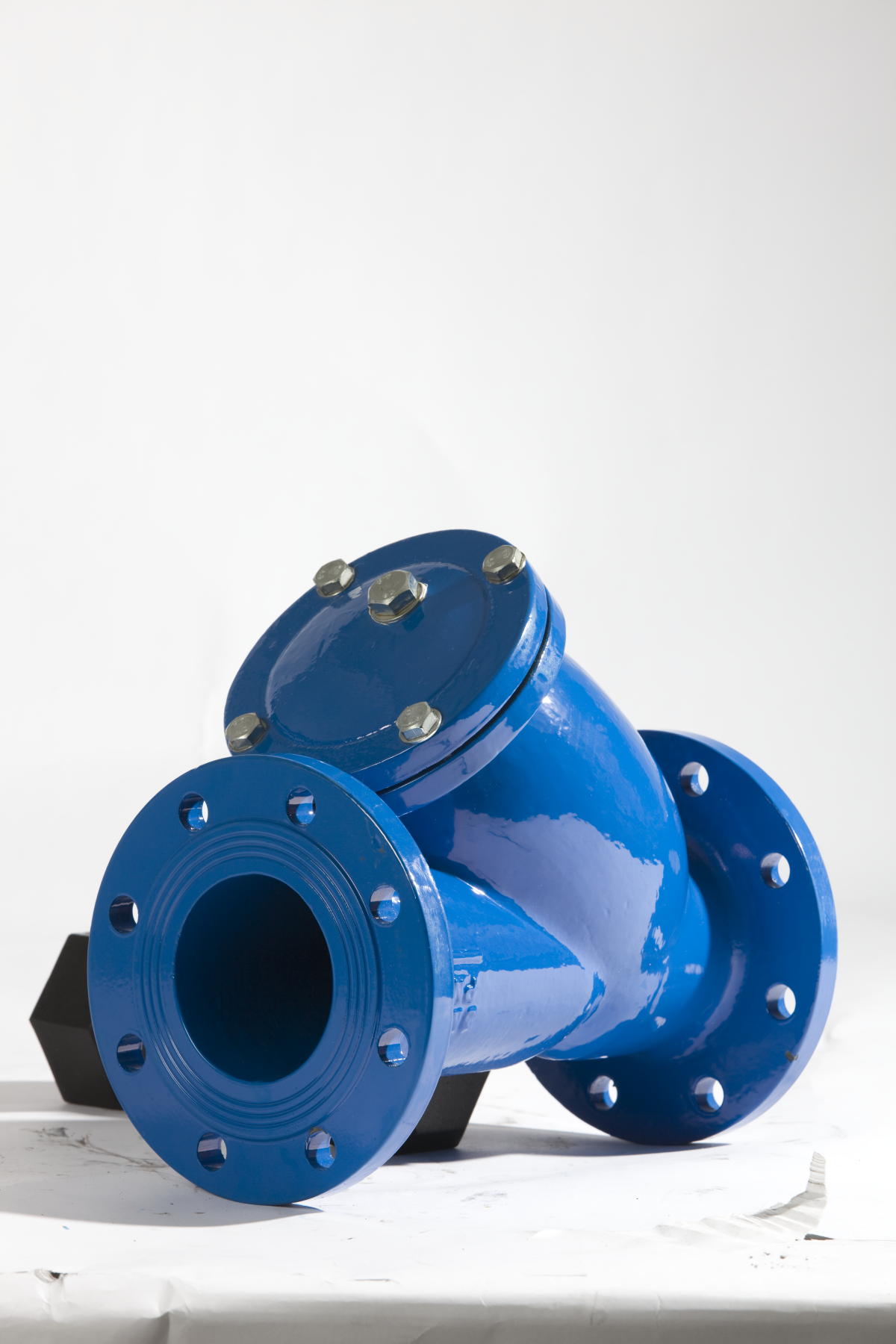

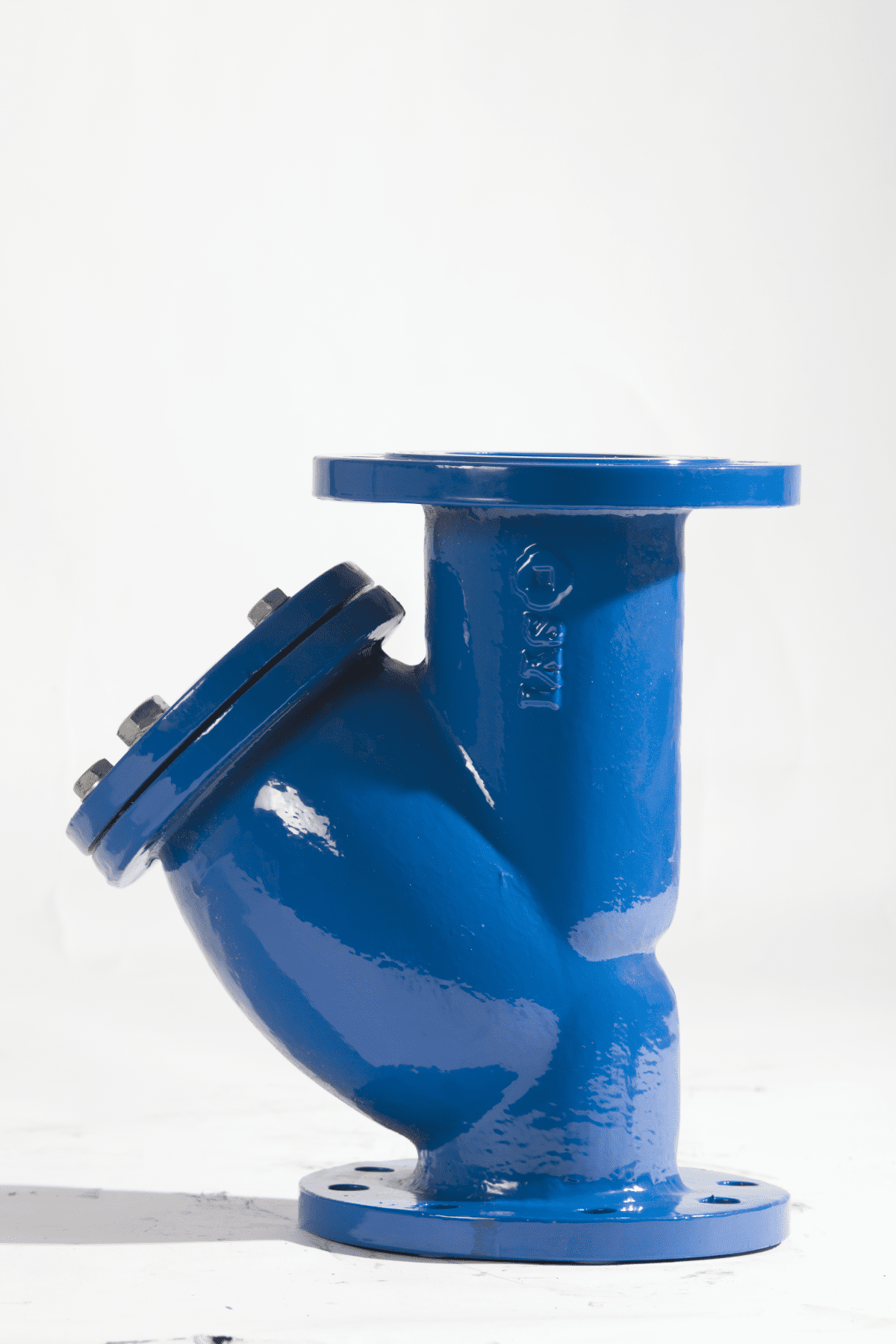

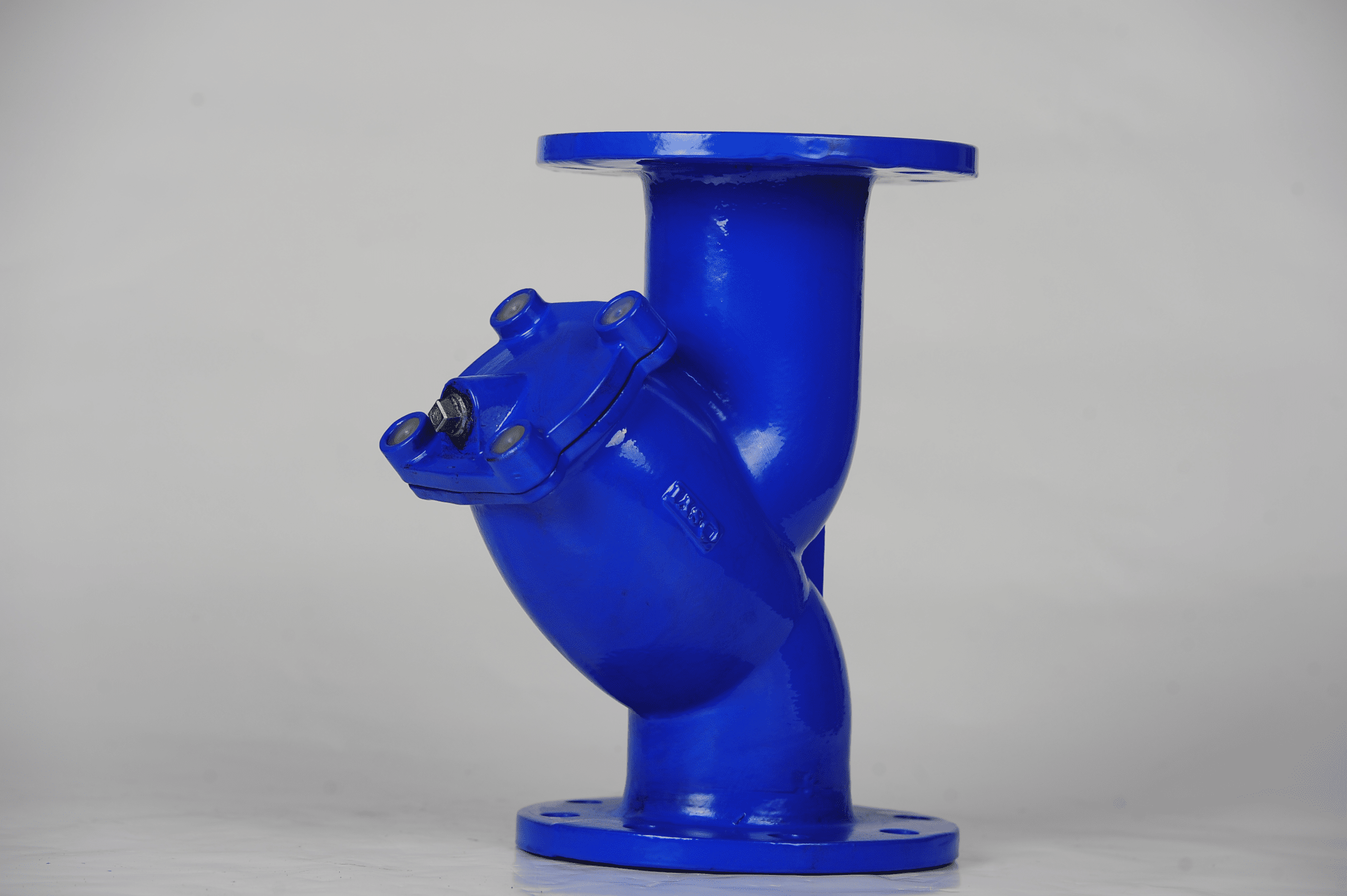

Y-type filter is an indispensable filter device in the pipeline system of conveying medium.
Y-type filter is usually installed at the inlet of pressure reducing valve, pressure relief valve,constant water level valve or other equipment to remove impurities in the medium, so as to protect the normal use of valves and equipment. Y type filter (water filter) has the advantages of simple production, convenient installation and cleaning, and large amount of pollution.
Y-type filter, as an indispensable high-efficiency filtration equipment in purification equipment
engineering, has played a great role in the treatment of domestic wastewater, sewage and industrial sewage; In various industries in the use of a large number of effective treatment of domestic and industrial sewage, so that the valuable water resources have been effectively reused.
engineering, has played a great role in the treatment of domestic wastewater, sewage and industrial sewage; In various industries in the use of a large number of effective treatment of domestic and industrial sewage, so that the valuable water resources have been effectively reused.
Techinical Specifications:
Design: EN558-1
Face to face : BS3202 F1 / BS2080
Flange drilling: DIN2501/ANSIB16.10 / EN1092 / DIN2531 / DIN2532 / DIN2533EN1092 / BS4504
Working temperature: 0-100℃
Working pressure: PN10-PN25
Design: EN558-1
Face to face : BS3202 F1 / BS2080
Flange drilling: DIN2501/ANSIB16.10 / EN1092 / DIN2531 / DIN2532 / DIN2533EN1092 / BS4504
Working temperature: 0-100℃
Working pressure: PN10-PN25
Main Parts and Material:
Unit: mm
|
DN
|
L
|
H
|
D
|
|
|
PN10
|
PN16
|
|||
|
50
|
225
|
136
|
165
|
165
|
|
65
|
273
|
158
|
185
|
185
|
|
80
|
292
|
174
|
200
|
200
|
|
100
|
352
|
205
|
220
|
220
|
|
125
|
420
|
247
|
250
|
250
|
|
150
|
470
|
284
|
285
|
285
|
|
200
|
543
|
346
|
340
|
340
|
|
250
|
660
|
421
|
400
|
400
|
|
300
|
762
|
492
|
455
|
455
|
For other sizes not mentioned above, please contact us.We have right to change the data without further notice.
