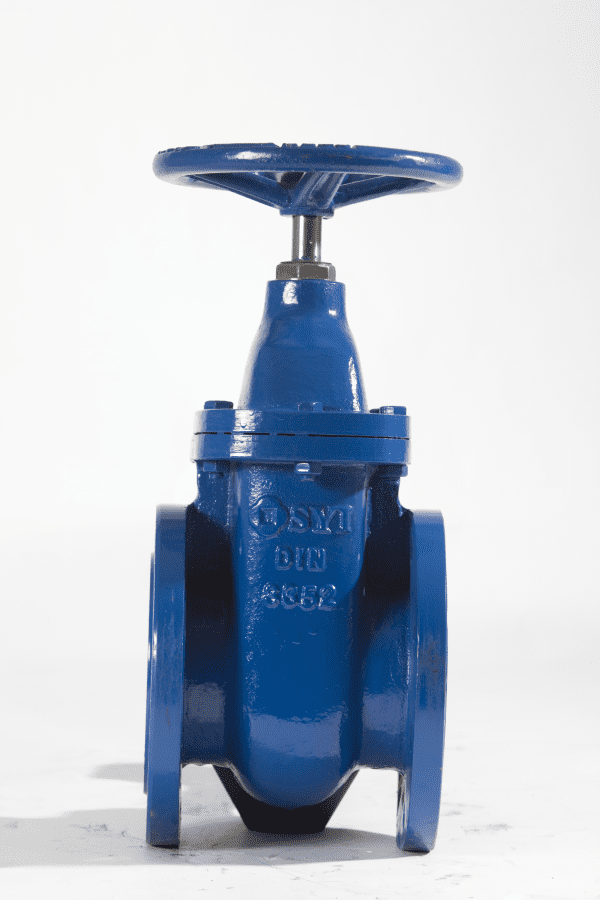

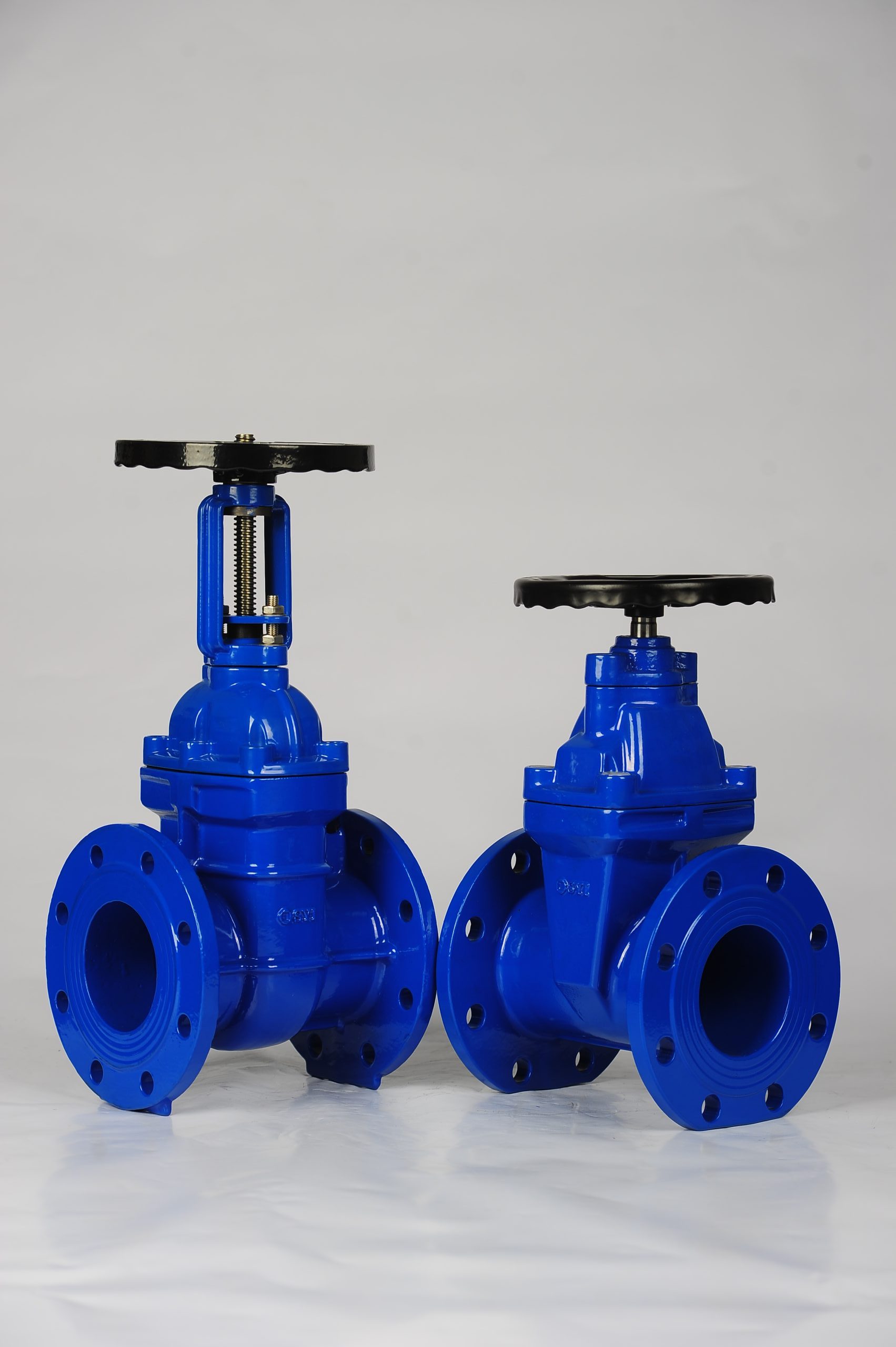

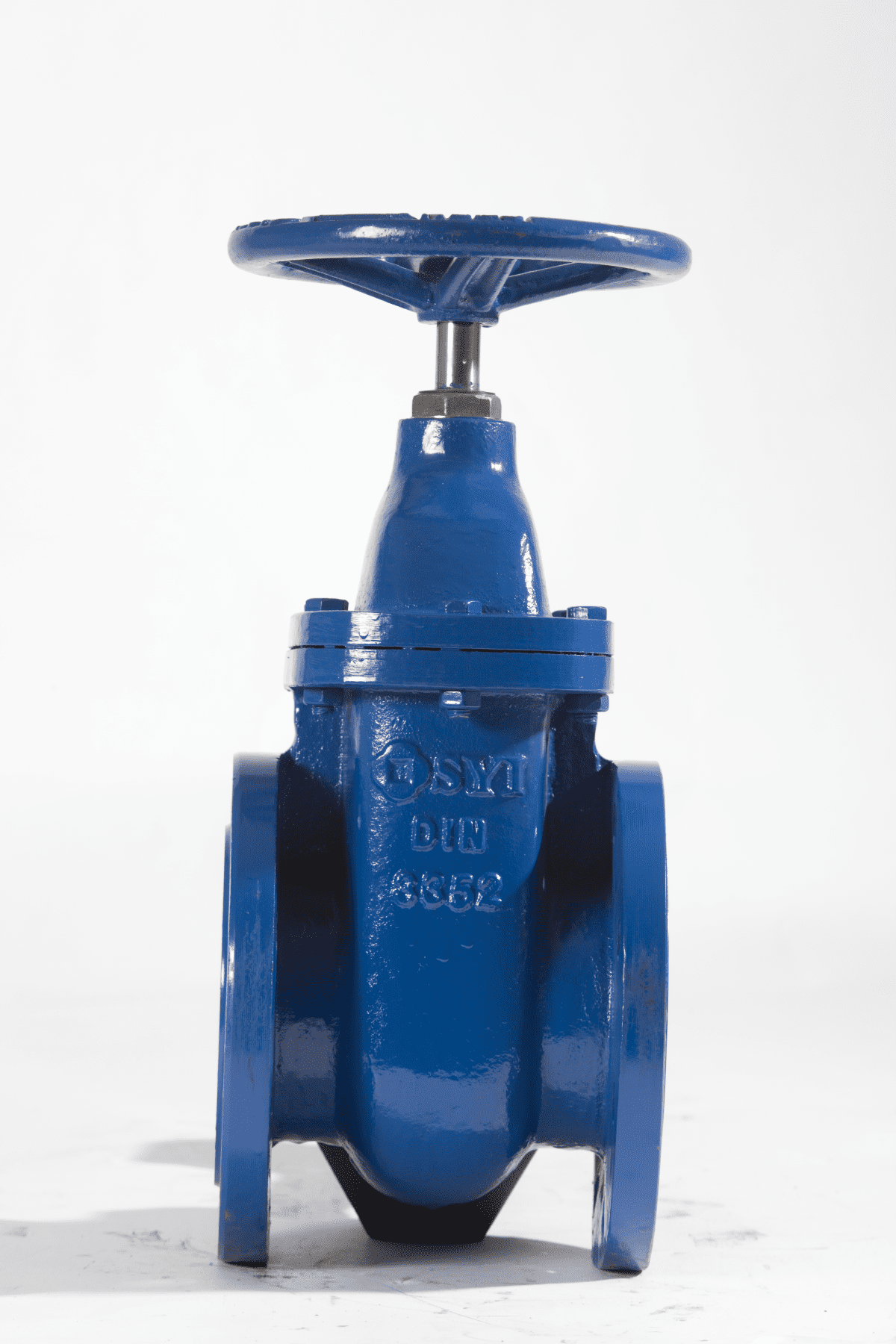

F5 valves with longer length than F4, easy to install and with longer service life. Inside and outside epoxy resin coating, wedge wholly bonded with rubber. Three “O” ring sealing. these all insure excellent corrosion protection and reliable sealing capability. per request, the gate valves can be actuated by operating lever, hand wheel electrical actuator and so on.
SPECIFICATIONS
Technical Specifications:
Design: DIN3352
Face to face: EN558/ DIN3202-F5
Flange drilled : DIN2531/DIN2532/ DIN2533 / EN1092
Working Temperature: 0- 100℃
Working pressure: PN10 / PN16
