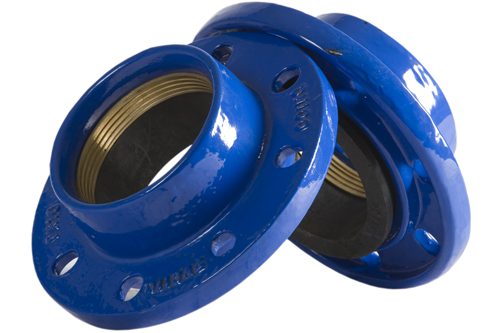

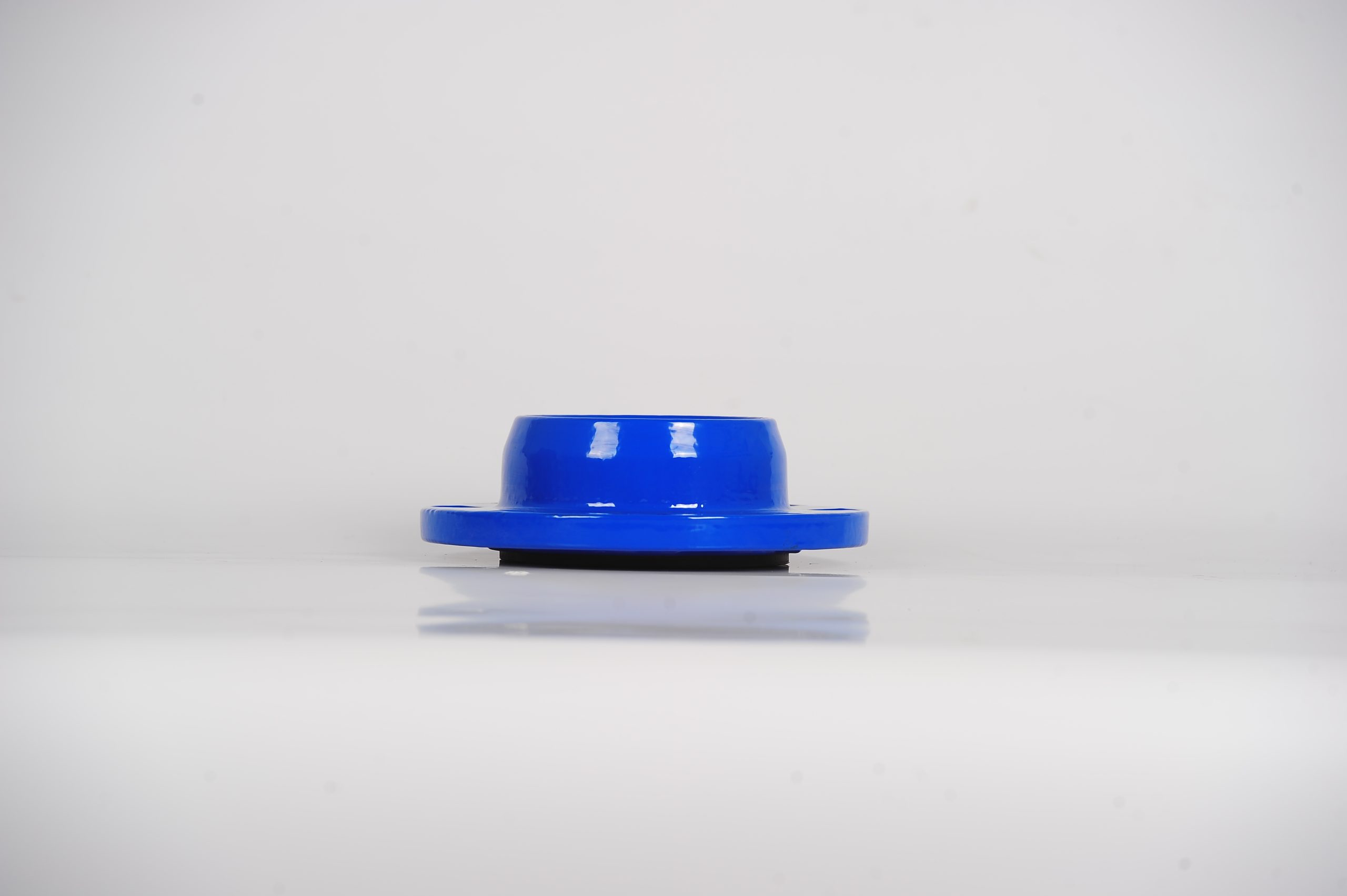

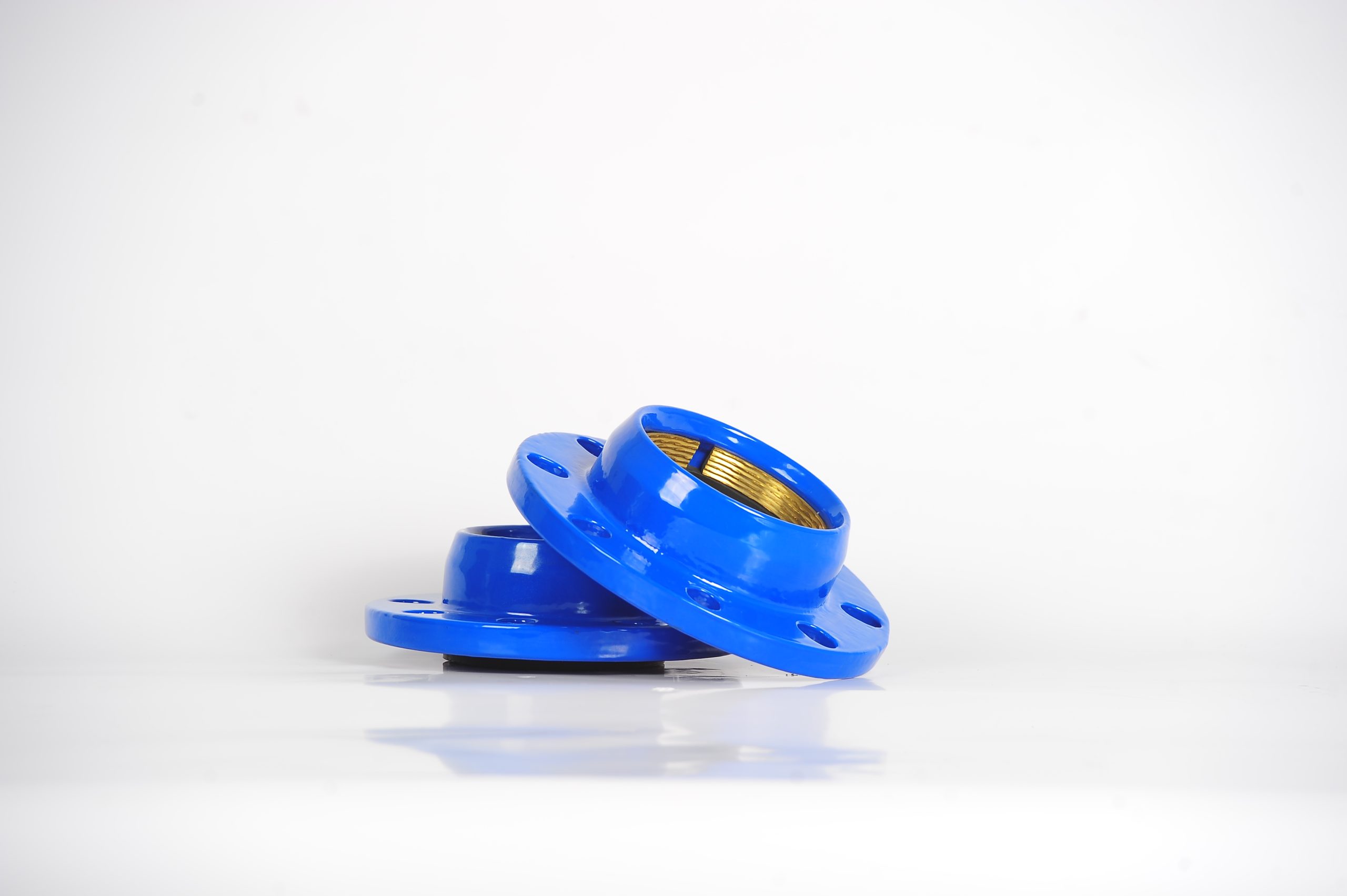

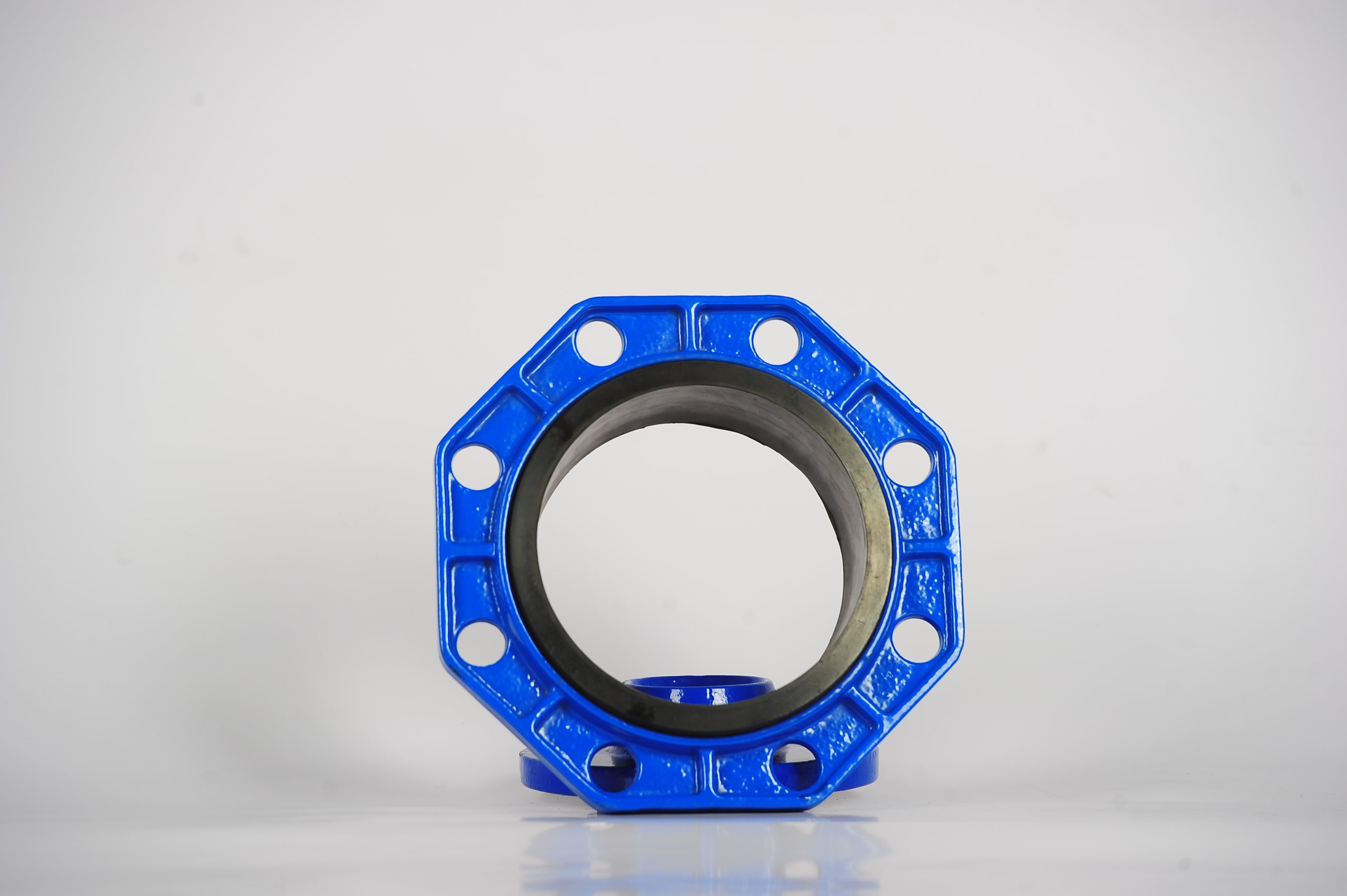

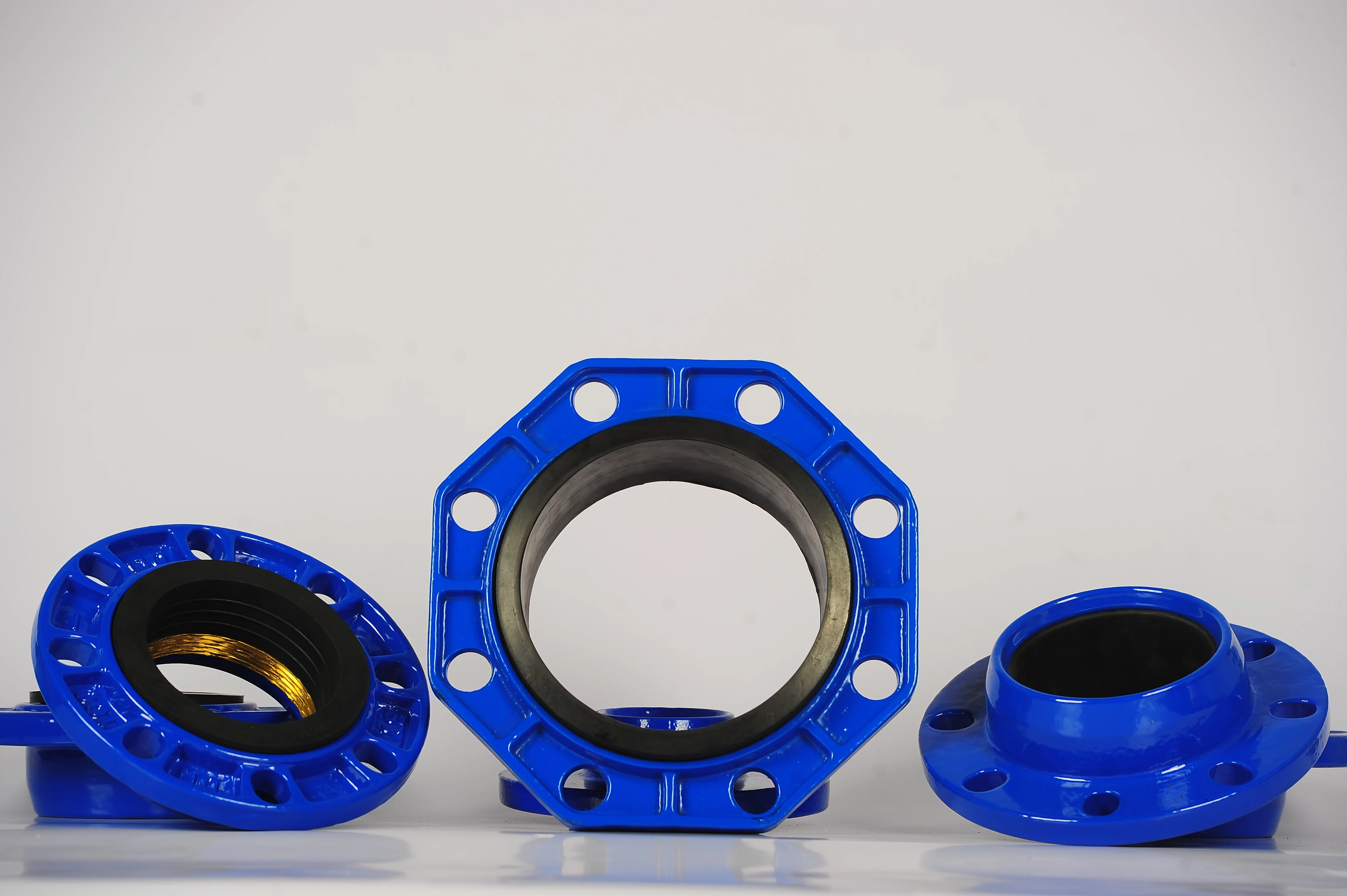

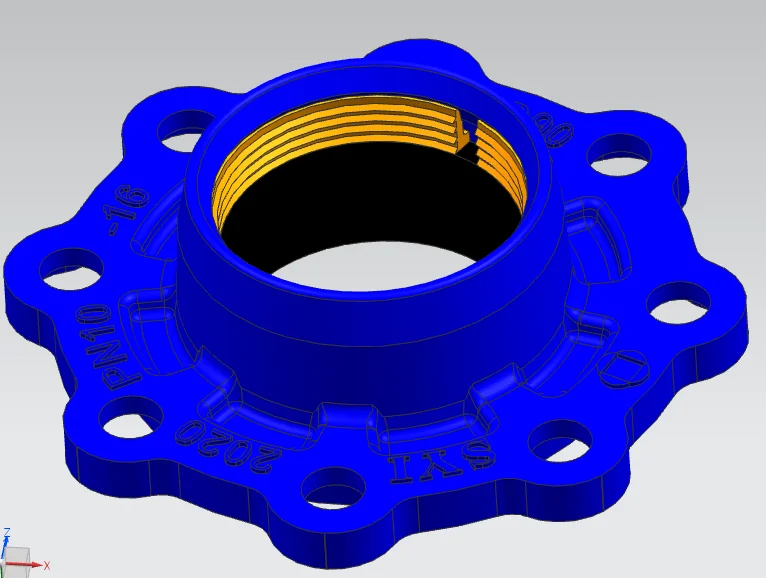

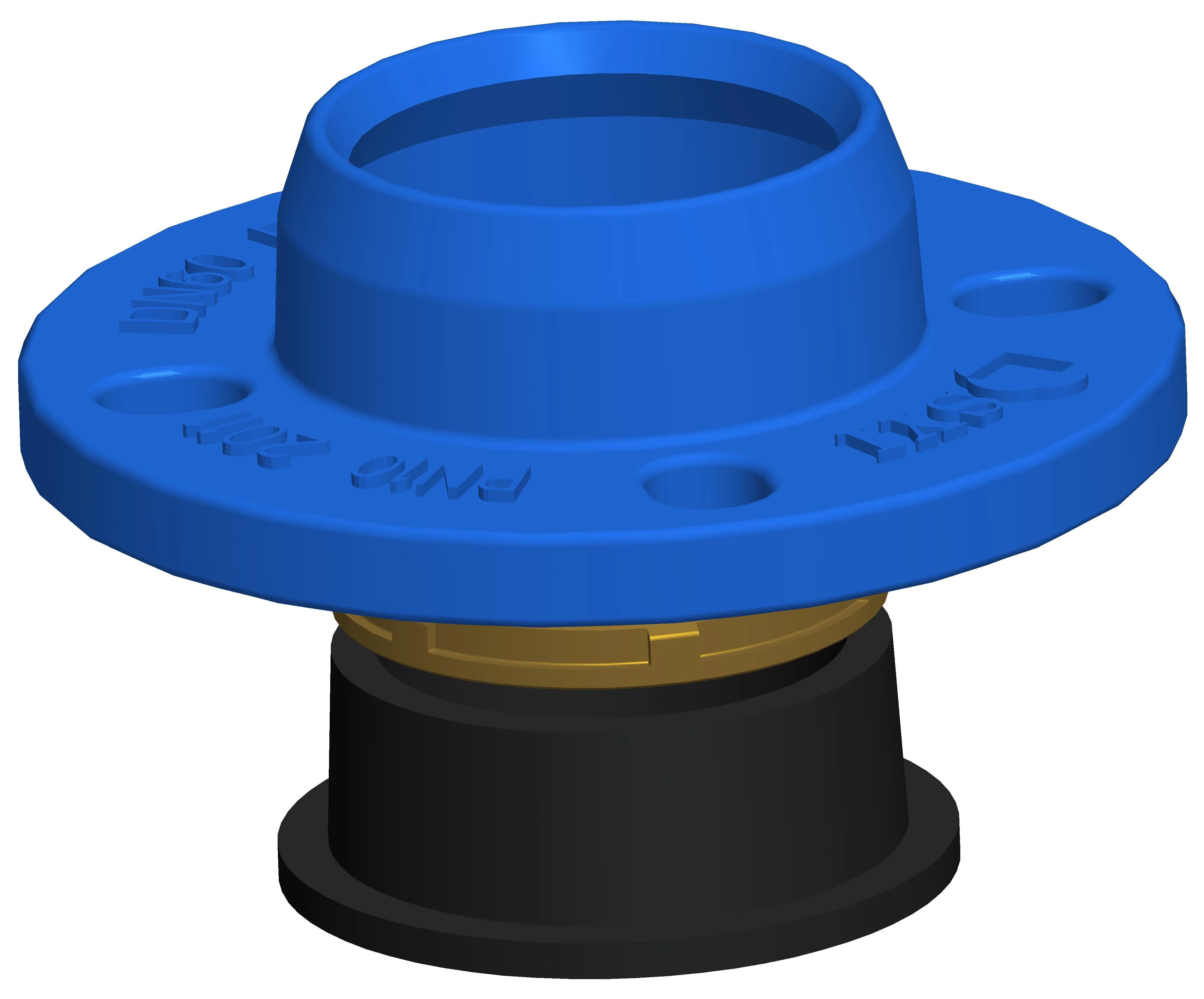

SYI Ductile Iron Compact Quick Adaptors for PE/PVC/DI pipes, developed by experienced engineers in SYI in 2010, dedicated used for connecting uPVC pipes with flanged products, and also for PE pipes with the gripping ring of same outside diameter, with most reasonable, light, and competitive features.
|
Material:
Body:Ductile Iron grade 500-7/450-10 in accordance with ISO 1083 or 70-50-05/65-45-12 with ASTM A536
Gasket:Rubber E.P.D.M./NBR/SBR in accordance with EN 681.1
Opted Griping Ring:Brass
|
|
|
Flange:PN10 and PN16 drilling in accordance with ISO 7005-2/EN 1092-2
|
|
|
Working Pressure: 16 Bar or 250 PSI
|
|
|
Coating
|
|
|
External coatings
|
Internal coatings
|
|
liquid epoxy resin painting
epoxy applied by FBE according to customers’ requirements |
liquid epoxy resin painting
epoxy applied by FBE according to customers’ requirements |
|
Reference Rules:Designed and tested in accordance with EN14525, ANSI/AWWA C219 and EN545
|
|
|
Accessories:gasket + copper ring. The bolts and nuts are supplied respectively with the Quick Adaptors usually.
|
|
|
Features:
1.The quick adaptors only need the gasket or the gasket + copper ring, sliding into the end of the connecting pipe socket to realize quick installation and connection. 2.Under certain conditions, it can replace universal flanged adaptor or Straight flanged adaptors, and the cost are lower, but the detachable performance is slightly worse. |
|
SYI-QA, developed by experienced engineers in SYI in 2010, dedicated used for connecting uPVC pipes with flanged products, and also for PE pipes with the gripping ring of same ourside diameter.
When connecting the uPVC pipes, it can joint by push-in directly through the gasket.
When connecting the PE pipes, the gripping ring can simultaneously ensure pipe end retention and tightness, and restrict to pull out.
SYI-QA makes the connection between flange and uPVC/PE/DI pipes more quicker, easier, with lower cost instead of Flanged Socket or Flanged Adaptors.
In the use of better performance on the basis of both procurement and construction cost economy.
When connecting the PE pipes, the gripping ring can simultaneously ensure pipe end retention and tightness, and restrict to pull out.
SYI-QA makes the connection between flange and uPVC/PE/DI pipes more quicker, easier, with lower cost instead of Flanged Socket or Flanged Adaptors.
In the use of better performance on the basis of both procurement and construction cost economy.
SYI COMPACT Quick Adaptors Features:

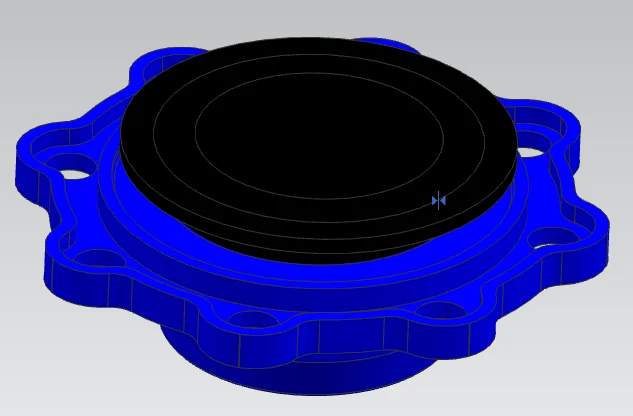

SYI-CQA and SYI-CQAPE is our new improved Quick Adaptor, which is characterized by rubber extrusion to achieve the sealing and stop function of uPVC/PE pipe.
In order to achieve this function it is necessary to improve the surface quality of the casting, through process improvement, producing by auto-machine moulding line, so it is not only improved the product quality but improved the production efficiency at the same time.
SYI-CQA and SYI-CQAPE with the high quality and best price, with greater market competitiveness.
SYI-CQA and SYI-CQAPE is our new improved Quick Adaptor, which is characterized by rubber extrusion to achieve the sealing and stop function of uPVC/PE pipe.
In order to achieve this function it is necessary to improve the surface quality of the casting, through process improvement, producing by auto-machine moulding line, so it is not only improved the product quality but improved the production efficiency at the same time.
SYI-CQA and SYI-CQAPE with the high quality and best price, with greater market competitiveness.

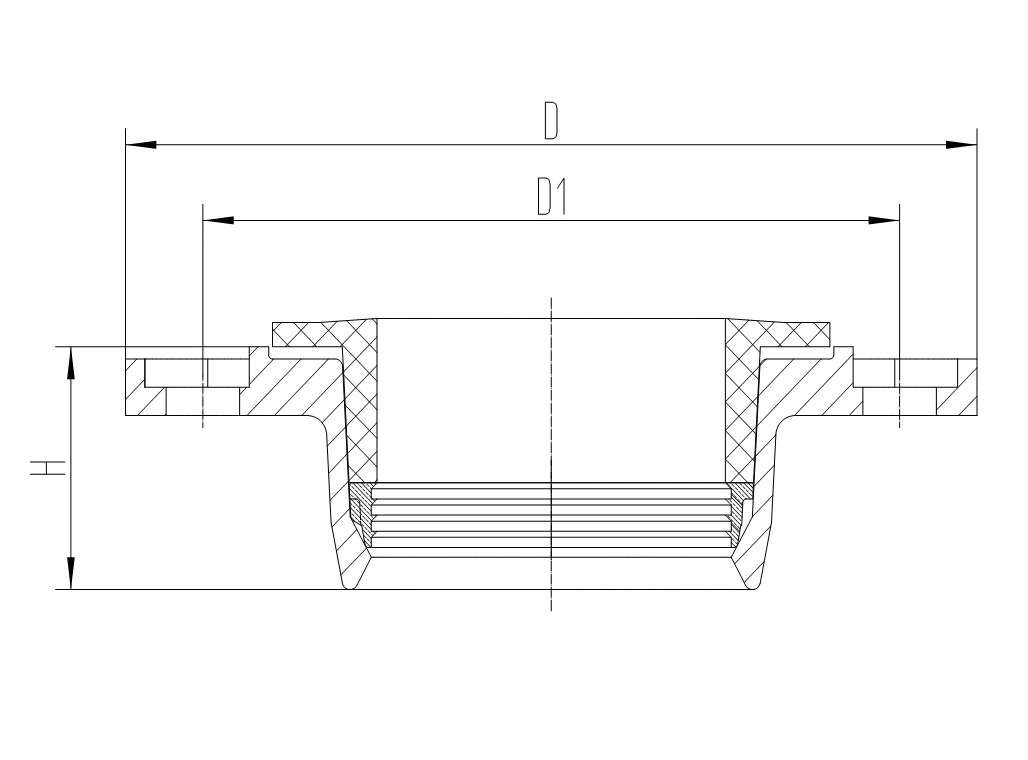

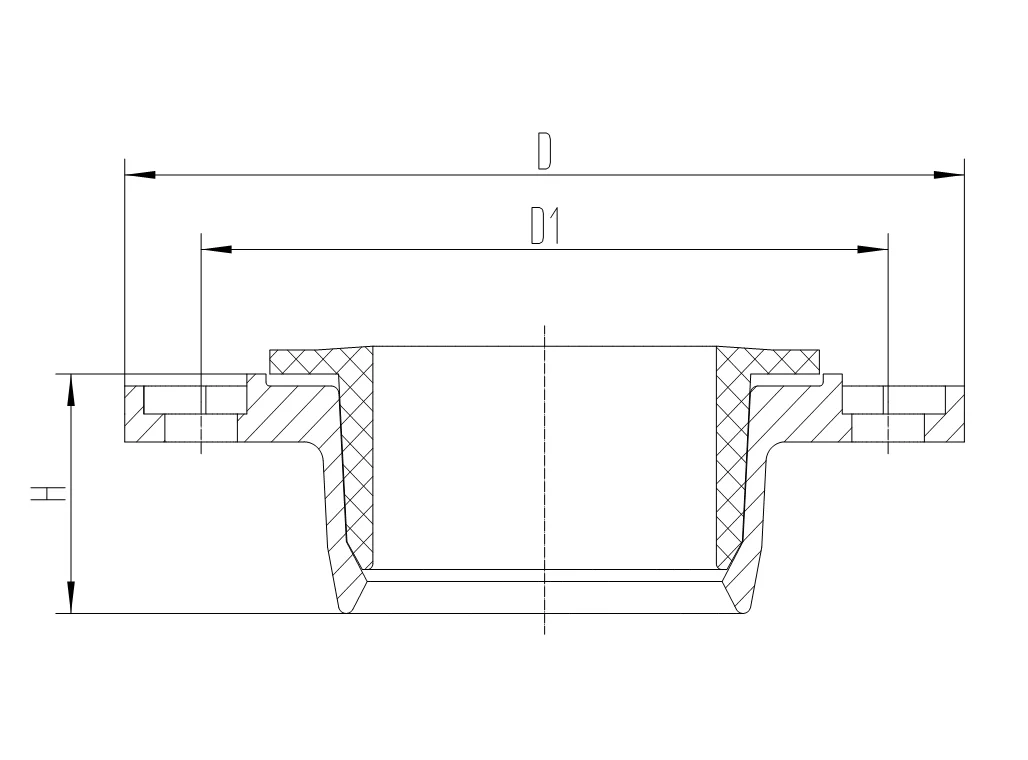

SYI COMPACT Quick Adaptors for PVC pipes Dimensions
|
SYI S. N.
|
DN
|
OD
|
D
|
D1
|
D2
|
H
|
|
mm
|
||||||
|
SYI-QAPVC4050
|
40
|
50
|
150
|
110
|
/
|
52
|
|
SYI-QAPVC5050
|
50
|
50
|
165
|
125
|
/
|
52
|
|
SYI-QAPVC5063
|
50
|
63
|
165
|
125
|
/
|
54
|
|
SYI-QAPVC60/6563
|
60/65
|
63
|
185
|
135
|
145
|
54
|
|
SYI-QAPVC60/6575
|
60/65
|
75
|
185
|
135
|
145
|
57
|
|
SYI-QAPVC8075
|
80
|
75
|
200
|
155
|
/
|
57
|
|
SYI-QAPVC8090
|
80
|
90
|
200
|
155
|
/
|
60
|
|
SYI-QAPVC10090
|
100
|
90
|
220
|
180
|
/
|
60
|
|
SYI-QAPVC100110
|
100
|
110
|
220
|
180
|
/
|
64
|
|
SYI-QAPVC125125
|
125
|
125
|
250
|
210
|
/
|
72
|
|
SYI-QAPVC125140
|
125
|
140
|
250
|
210
|
/
|
76
|
|
SYI-QAPVC150160
|
150
|
160
|
285
|
240
|
/
|
80
|
|
SYI-QAPVC200180
|
200
|
180
|
340
|
304
|
/
|
86
|
|
SYI-QAPVC200200
|
200
|
200
|
340
|
304
|
/
|
90
|
|
SYI-QAPVC200225
|
200
|
225
|
340
|
304
|
/
|
90
|
|
SYI-QAPVC250250
|
250
|
250
|
400
|
350
|
/
|
92
|
|
SYI-QAPVC300280
|
300
|
280
|
455
|
402
|
/
|
98
|
|
SYI-QAPVC300315
|
300
|
315
|
455
|
402
|
/
|
102
|
|
SYI-QAPVC350355
|
350
|
355
|
520
|
464
|
/
|
114
|
|
SYI-QAPVC400400
|
400
|
400
|
580
|
515
|
/
|
128
|
|
For other sizes not mentioned above, please contact us.We have right to change the data without further notice.
|
||||||
